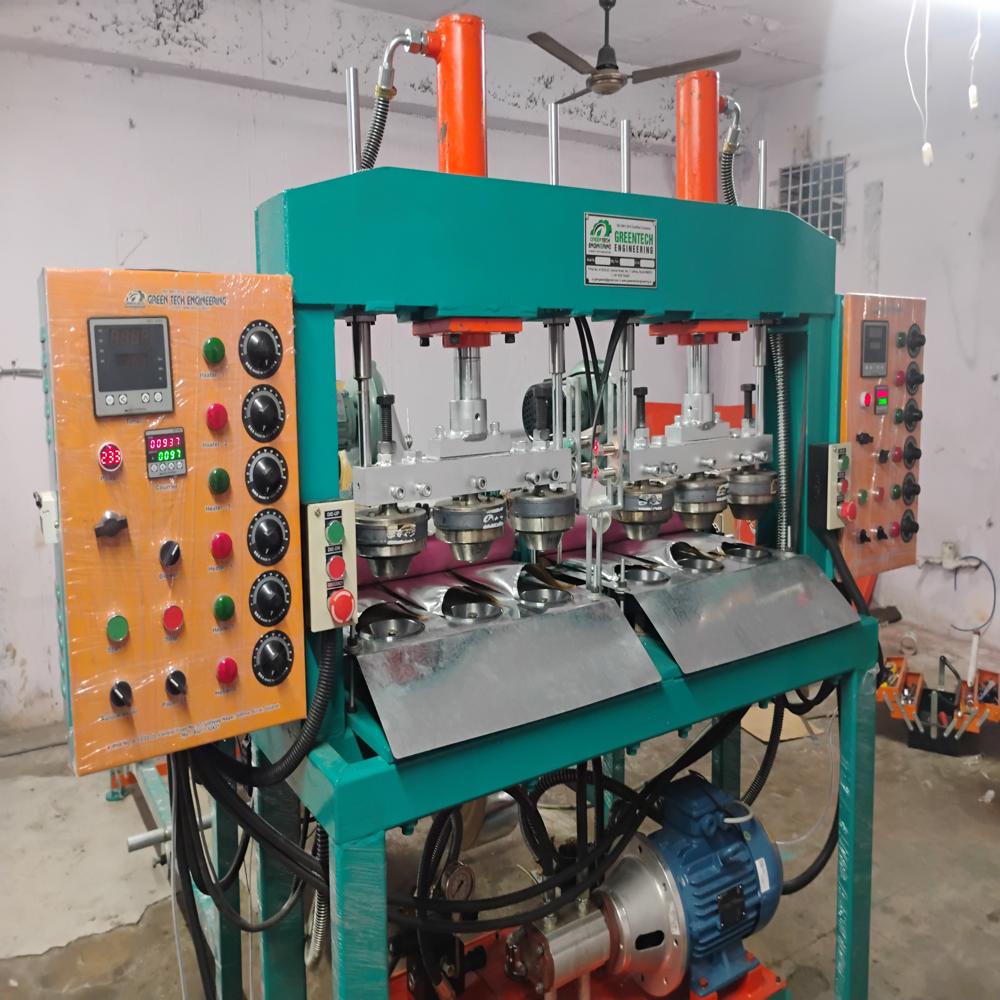

High Speed Fully Automatic Thali Making Machine

TECHNICAL DATA

GT-P22

ï DIE SIZE

4ïï TO 15ïï

ï DIE ATTACHMENT

4ïï TO 6ïï AT A TIME 3 DIES

7ïï TO 8ïï AT A TIME 2 DIES

9ïï TO 15ïï AT A TIME 1 DIES

ï RAW MATERIAL GSM

DONA: 80 TO 200 GSM (ROLL FORM) CHILLA PLATE & THALI: 80 TO 200 GSM (ACCORDING TO DIE GSM CAPACITY)

ï PRODUCTION

4800 DONA/HOURS

2800 THALI/HOURS

(DEPENDS ON PAPER SIZE & GSM)

ï MOTOR

3 HP 1440 RPM 50 HZ.

ï POWER SOURCE

220 V 50 HZ/ 440 V 50 HZ

ï ELECTRICITY CONSUMPTION

3 TO 3.5 UNITS/HOURS.

ï OIL TANK WITH AIR COLLER

100 LITTER (USE 68 NO 90 LITTER OIL)

(WE ARE NOT PROVIDE HYDRAULIC OIL WITH MACHINE)

ï STRUCTURE

FOUR PILLER

BODY PLATE: - 16MM, 36 MM

ï ELECTRIC PANEL

PLC CONTROL

ï HEATING CONTOLLER

DIGITAL TEMPRATURE CONTROL

ï MACHINE WEIGHT

400 KG

ï OVERALL DIMENSION

72ïï L * 43ïï W * 72ïï H

SUILTABLE FOR PAPER DONA, CHILLA PLATE & PAPER THALI.
